» KHV560-4
Motor Type:
KHV560-4
Medium Voltage IC411/IP55
: KHV • : 560 • 4 /1,490 • 1,400.00/1,900.00 • : B3 •
Valiadis SA
Series KHV
/
KHV560
/
1,400.00 kW / 1,900.00 hp
1,490
B3
Voltage /
6,000-Y
50 Hz
IP55
0.00 A
0.00 A / 161.00 A
F
0.00
100%
75%
50%
25%
0.87
96.20
Moment of inertia
70.0000
8,973.00
1.00
2.30
6.40
6334C3
6334C3
Vibration
0.00
Warranty
12-18 Months
5,900.0
Code
KHV_4_001900.00_560_B3_1
Old Code
KHV/4-1900.00/560/B3
100%
75%
50%
25%
0.87
96.20

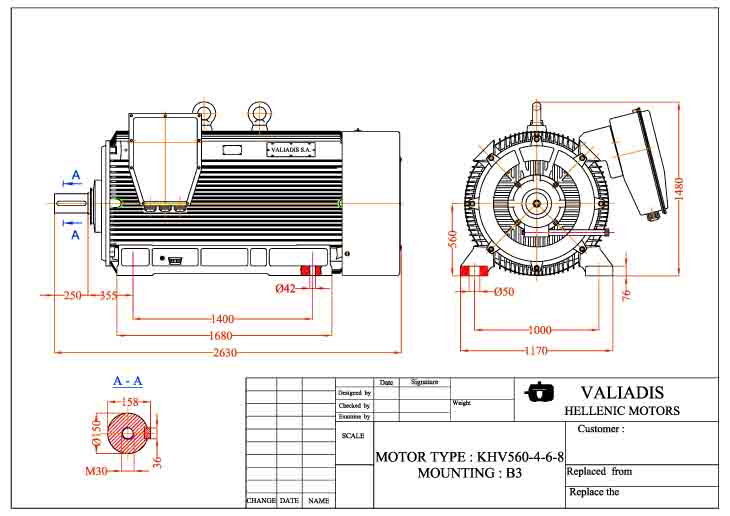

Drawing
(www.valiadis.gr/pool/attch/pdf/KHV_4_001900.00_560_B3_1.pdf)
