» TMKHV355-4
Motor Type:
TMKHV355-4
Medium Voltage IC611/IP55
: TMKHV • : 355 • 4 /1,480 • 200.00/270.00 • : B3 •
Valiadis SA
Series TMKHV
/
TMKHV355
/
200.00 kW / 270.00 hp
1,480
B3
Voltage /
6,000-Y
50 Hz
IP55
0.00 A
0.00 A / 23.90 A
F
0.00
100%
75%
50%
25%
0.86
93.50
Moment of inertia
4.8000
1,291.00
1.40
3.00
7.00
6322C3
6322C3
Vibration
0.00
Warranty
12-18 Months
2,140.0
Code
TMKHV_4_000270.00_355_B3_1
Old Code
TMKHV/4-270.00/355/B3
100%
75%
50%
25%
0.86
93.50

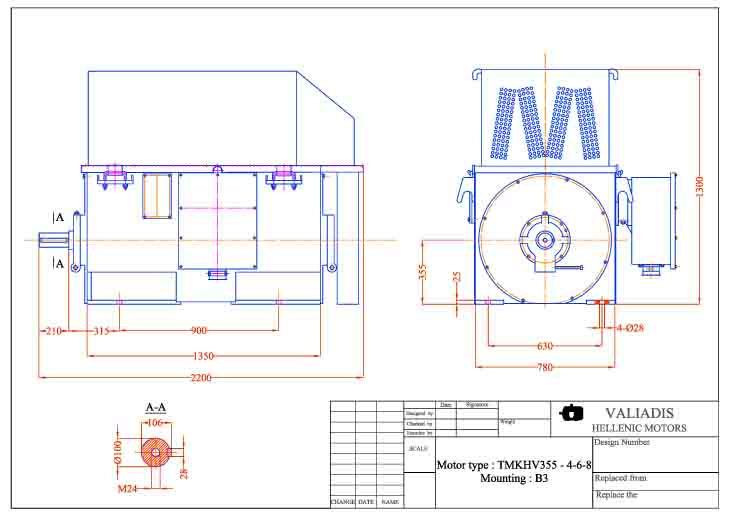

Drawing
(www.valiadis.gr/pool/attch/pdf/TMKHV_4_000270.00_355_B3_1.pdf)
