» TMKHV450-4
Motor Type:
TMKHV450-4
Medium Voltage IC611/IP55
: TMKHV • : 450 • 4 /1,485 • 560.00/760.00 • : B3 •
Valiadis SA
Series TMKHV
/
TMKHV450
/
560.00 kW / 760.00 hp
1,485
B3
Voltage /
6,000-Y
50 Hz
IP55
0.00 A
0.00 A / 63.20 A
F
0.00
100%
75%
50%
25%
0.90
94.80
Moment of inertia
17.0000
3,601.00
1.40
2.90
6.60
6326C3
6326C3
Vibration
0.00
Warranty
12-18 Months
3,790.0
Code
TMKHV_4_000760.00_450_B3_1
Old Code
TMKHV/4-760.00/450/B3
100%
75%
50%
25%
0.90
94.80

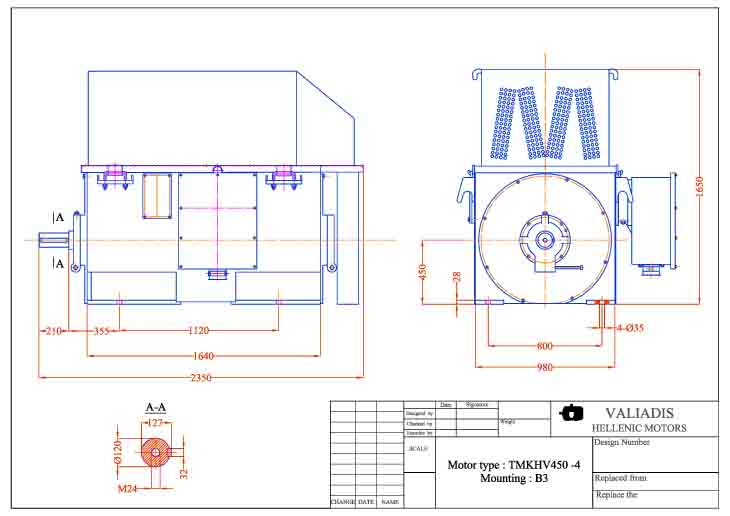

Drawing
(www.valiadis.gr/pool/attch/pdf/TMKHV_4_000760.00_450_B3_1.pdf)
