» TMKHV560-6
Motor Type:
TMKHV560-6
Medium Voltage IC611/IP55
: TMKHV • : 560 • 6 /990 • 1,120.00/1,525.00 • : B3 •
Valiadis SA
Series TMKHV
/
TMKHV560
/
1,120.00 kW / 1,525.00 hp
990
B3
Voltage /
6,000-Y
50 Hz
IP55
0.00 A
0.00 A / 133.20 A
F
0.00
100%
75%
50%
25%
0.85
95.20
Moment of inertia
85.0000
10,804.00
0.80
2.20
6.00
NU334
6334C3
Vibration
0.00
Warranty
12-18 Months
9,310.0
Code
TMKHV_6_001525.00_560_B3_1
Old Code
TMKHV/6-1525.00/560/B3
100%
75%
50%
25%
0.85
95.20

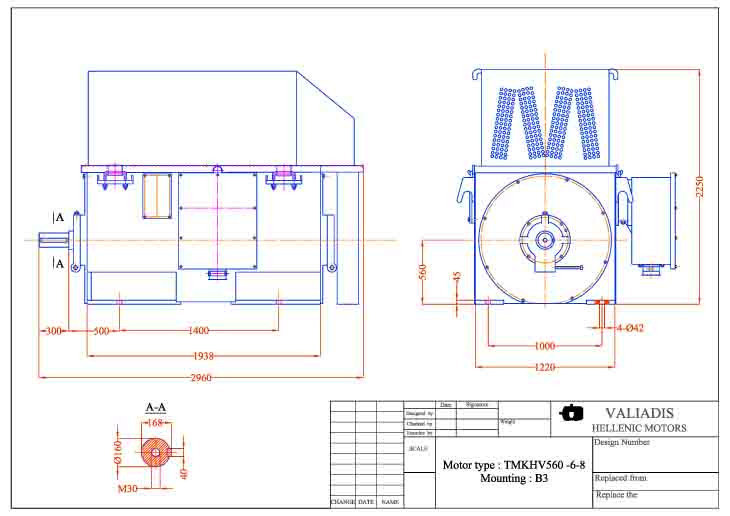

Drawing
(www.valiadis.gr/pool/attch/pdf/TMKHV_6_001525.00_560_B3_1.pdf)
