» AHV500-4
Motor Type:
AHV500-4
Medium Voltage IC01/IP23
: AHV • : 500 • 4 /1,485 • 1,400.00/1,900.00 • : B3 •
Valiadis SA
Series AHV
/
AHV500
/
1,400.00 kW / 1,900.00 hp
1,485
B3
Voltage /
6,000-Y
50 Hz
IP23
0.00 A
0.00 A / 160.00 A
F
0.00
100%
75%
50%
25%
0.88
95.70
Moment of inertia
34.0000
9,003.00
1.00
2.70
5.90
6330C3
6328C3
Vibration
0.00
Warranty
12-18 Months
4,930.0
Code
AHV_4_001900.00_500_B3_1
Old Code
AHV/4-1900.00/500/B3
100%
75%
50%
25%
0.88
95.70

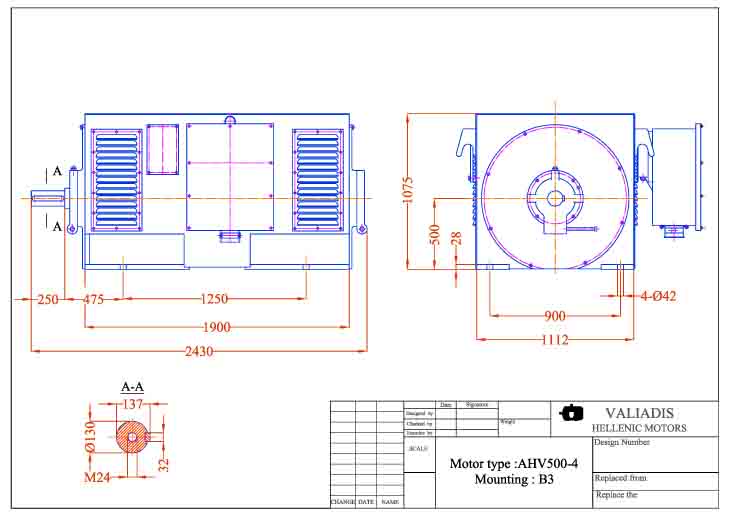

Drawing
(www.valiadis.gr/pool/attch/pdf/AHV_4_001900.00_500_B3_1.pdf)
