» AHV400-4
Motor Type:
AHV400-4
Medium Voltage IC01/IP23
: AHV • : 400 • 4 /1,485 • 450.00/610.00 • : B3 •
Valiadis SA
Series AHV
/
AHV400
/
450.00 kW / 610.00 hp
1,485
B3
Voltage /
6,000-Y
50 Hz
IP23
0.00 A
0.00 A / 51.10 A
F
0.00
100%
75%
50%
25%
0.89
95.20
Moment of inertia
14.0000
2,894.00
1.50
2.80
7.50
6324C3
6324C3
Vibration
0.00
Warranty
12-18 Months
2,720.0
Code
AHV_4_000610.00_400_B3_1
Old Code
AHV/4-610.00/400/B3
100%
75%
50%
25%
0.89
95.20

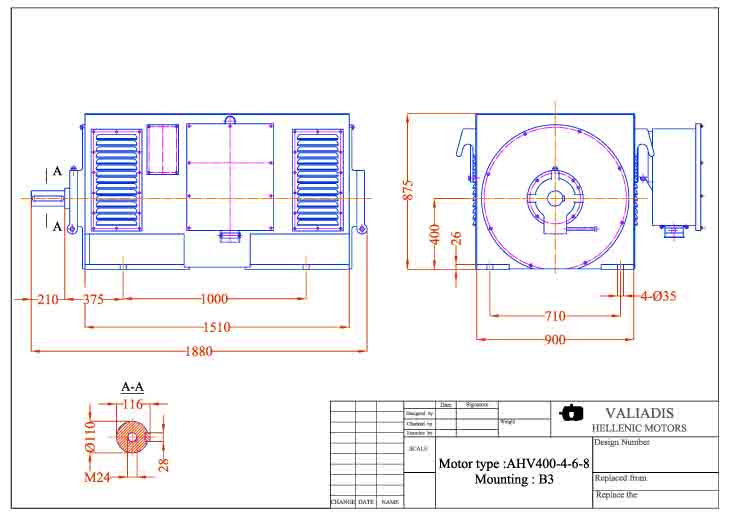

Drawing
(www.valiadis.gr/pool/attch/pdf/AHV_4_000610.00_400_B3_1.pdf)
