» AHV630-6
Motor Type:
AHV630-6
Medium Voltage IC01/IP23
: AHV • : 630 • 6 /993 • 1,600.00/2,200.00 • : B3 •
Valiadis SA
Series AHV
/
AHV630
/
1,600.00 kW / 2,200.00 hp
993
B3
Voltage /
6,000-Y
50 Hz
IP23
0.00 A
0.00 A / 184.30 A
F
0.00
100%
75%
50%
25%
0.87
96.00
Moment of inertia
124.0000
15,388.00
0.80
2.10
5.70
NU338
6338C3
Vibration
0.00
Warranty
12-18 Months
7,100.0
Code
AHV_6_002200.00_630_B3_1
Old Code
AHV/6-2200.00/630/B3
100%
75%
50%
25%
0.87
96.00

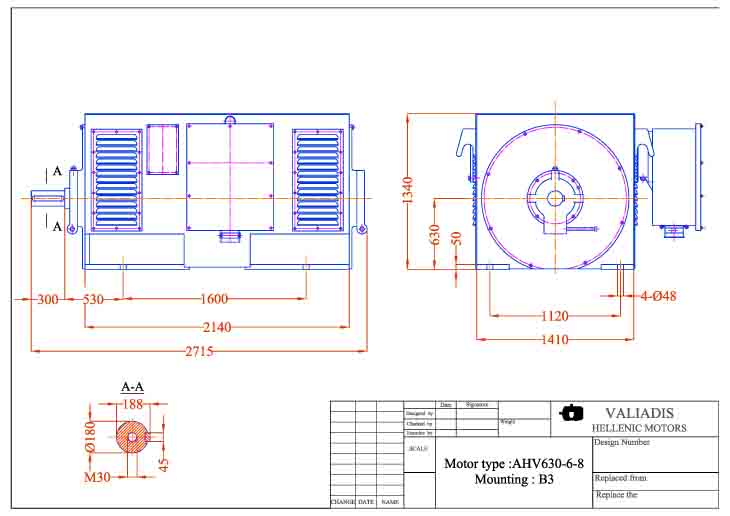

Drawing
(www.valiadis.gr/pool/attch/pdf/AHV_6_002200.00_630_B3_1.pdf)
