» TMKHV500-4
Motor Type:
TMKHV500-4
Medium Voltage IC611/IP55
: TMKHV • : 500 • 4 /1,485 • 1,000.00/1,360.00 • : B3 •
Valiadis SA
Series TMKHV
/
TMKHV500
/
1,000.00 kW / 1,360.00 hp
1,485
B3
Voltage /
6,000-Y
50 Hz
IP55
0.00 A
0.00 A / 114.60 A
F
0.00
100%
75%
50%
25%
0.88
95.40
Moment of inertia
34.0000
6,431.00
0.90
2.00
6.40
6330C3
6328C3
Vibration
0.00
Warranty
12-18 Months
5,340.0
Code
TMKHV_4_001360.00_500_B3_1
100%
75%
50%
25%
0.88
95.40

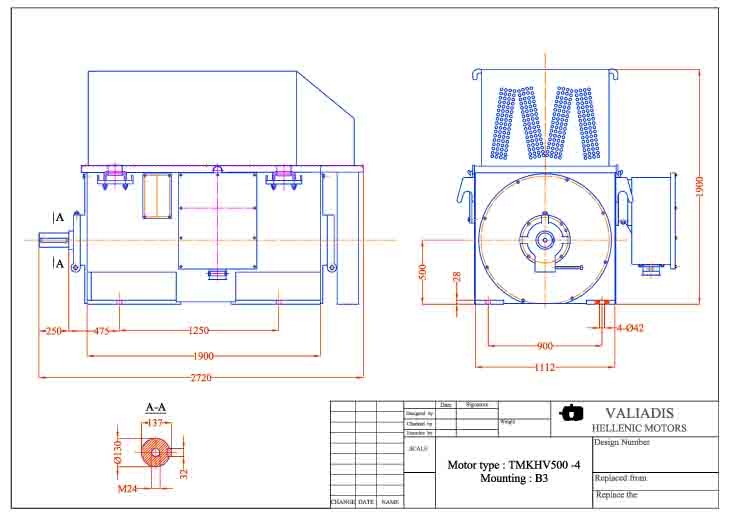

Drawing
(www.valiadis.gr/pool/attch/pdf/TMKHV_4_001360.00_500_B3_1.pdf)
